Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: 282P-1011P0-000
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: TLP
Product Model: TLP 2824 Plus

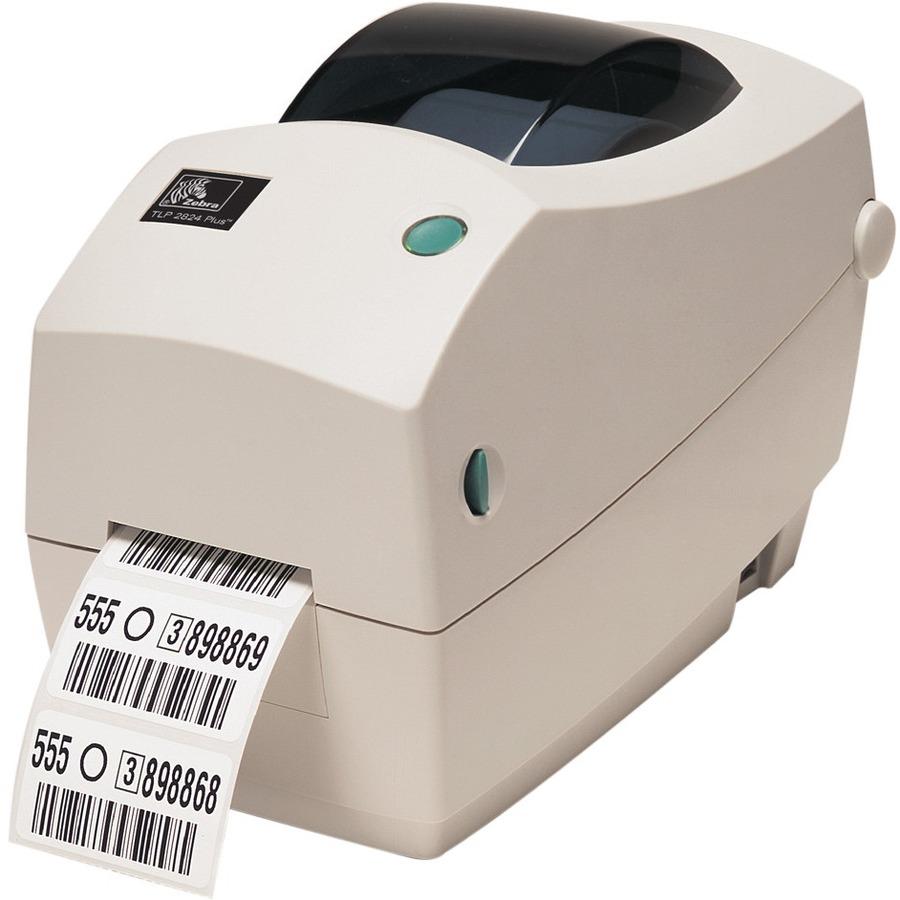

Product Name: TLP 2824 Plus Thermal Label Printer
Marketing Information:

The ultra-compact TLP 2824 Plus™ bar code label printer, for print widths up to 2.2 inches/56 mm, brings powerful performance to applications requiring both direct thermal and thermal transfer printing. It includes a 32-bit RISC processor for faster formatting and first label out, an auto-sensing serial port, and co-resident EPL and ZPL programming languages. Available options include additional memory, 10/100 Ethernet, label peeler, and receipt/label cutter.

Its ease of use-including Zebra Setup Utilities software for simple setup, OpenACCESS™ design and clear media window for simple media loading and monitoring, and an instant reset button-results in increased workplace efficiency. Offering flexible connectivity and options, the TLP 2824 Plus fits easily into a variety of applications.

Product Type: Direct Thermal/Thermal Transfer Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 101.60 mm/s
Maximum Print Resolution: 203 dpi
Maximum Print Width: 55.88 mm (2.20")
Application/Usage: Desktop
Memory
Standard Memory: 8 MB
Interfaces/Ports
Serial Port: Yes
USB: Yes
Media Types & Handling
Media Type:

• Black Bar
• Continuous Form
• Continuous Receipt
• Die-cut Label
• Fanfold
• Gap
• Notch
• Notched
• Perforated Label
• Receipt
• Roll Fed
• Tag
• Tag Stock

Maximum Label Width: 59.94 mm
Maximum Label Length: 990.60 mm
Physical Characteristics
Height: 177.8 mm
Width: 134.6 mm
Depth: 241.3 mm
Weight (Approximate): 1.59 kg
Miscellaneous
Platform Supported: PC
